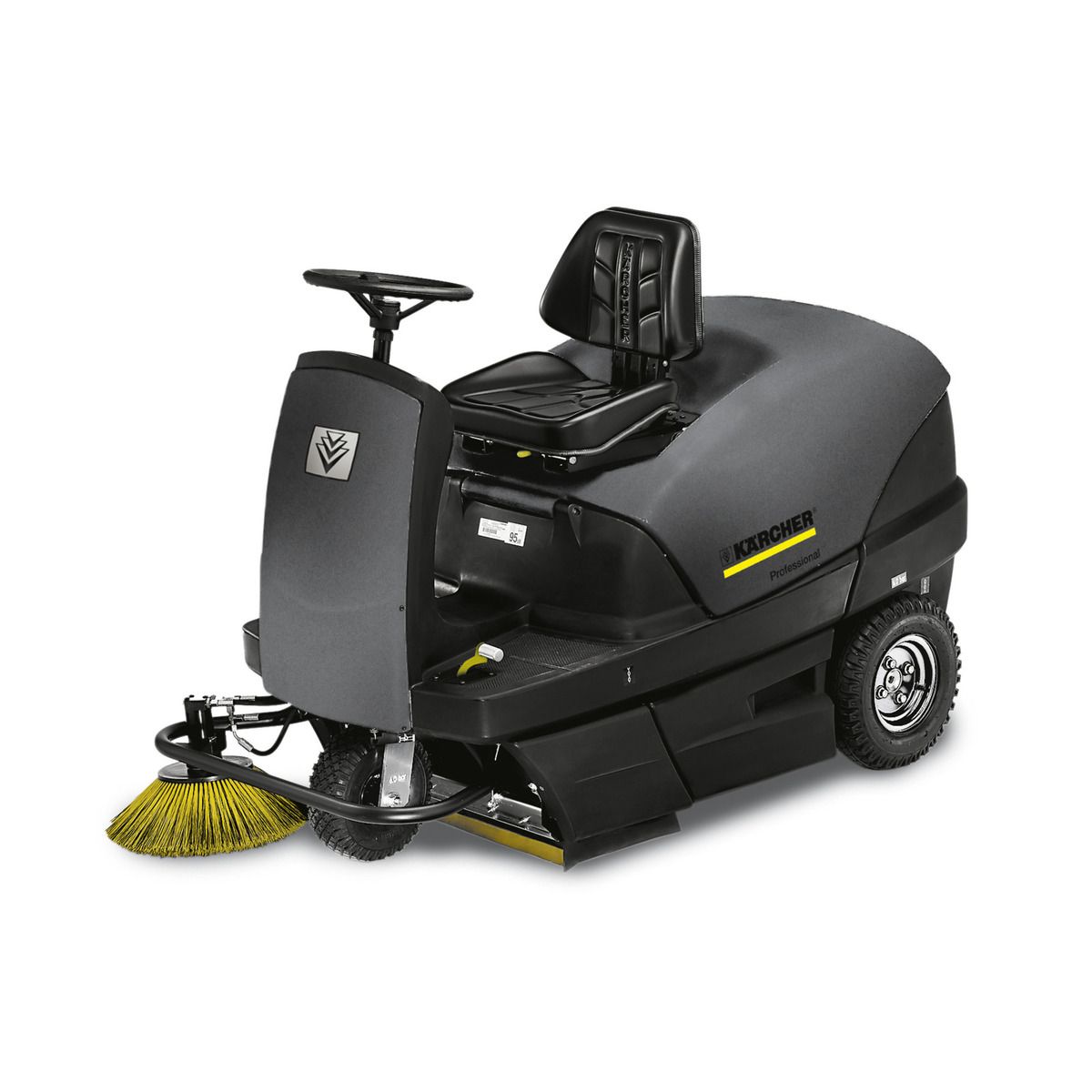

VACUUM SWEEPER KM 100/100 R G
TECHNICAL DESCRIPTION: Drive- Honda engine 6.7 kW - 1 pedal for forward and reverse - small turning circle (3350 mm) - automatic vacuum parking brake - automatic engine cut out when driver leaves seat Sweeping/vacuum system: This machine uses the overthrow principle, i.e. the roller brush throws the dirt up...
TECHNICAL DESCRIPTION: Drive- Honda engine 6.7 kW - 1 pedal for forward and reverse - small turning circle (3350 mm) - automatic vacuum parking brake - automatic engine cut out when driver leaves seat Sweeping/vacuum system: This machine uses the overthrow principle, i.e. the roller brush throws the dirt up and back into the dirt container. The floating roller brush adjusts automatically to uneven surfaces. The filter and main roller brush can be replaced without tools. With integrated coarse dirt flap for coarse waste, e.g. cans, split, gravel or wet leaves. The side brush and roller brush are hydraulically driven. A second optional side brush is available. Dirt container:Both 50 litre dirt containers can be removed from the side. Operation: The side brush and main roller brush can be lowered via a switch. Forward and reverse are controlled via a single pedal.
Features and benefits
Impact protection
Protects the sweeper and obstacles within the area being cleaned. Large filter area with automatic filter cleaning system
The filter is automatically cleaned when the machine is switched off âã¬ã for continuous low-dust sweeping for long periods of uninterrupted use. Filter cleaning can also take place manually. Filter replacement without tools. Easy to maintain
Filter and roller brush easy to remove without tools for flexible maintenance.EASY Operation operating concept
- Clear and logical arrangement of all controls in the handle and field of view for ease of use.
- Standard symbols for all Kãrcher sweepers.
Specifications
Technical data
| Drive | Four-stroke petrol engine / Honda |
| Drive âã¬ã power (kW) | 6.7 |
| Drive type | Petrol |
| Max. area performance (mÃã²/h) | 8000 |
| Working width (mm) | 700 |
| Working width with one side brush (mm) | 1000 |
| Working width with 2 side brushes (mm) | 1300 |
| Waste container (l) | 100 |
| Climbing ability (%) | 18 |
| Working speed (km/h) | 8 |
| Filter area (mÃã²) | 6 |
| Weight (kg) | 340 |
| Dimensions (L ã W ã H) (mm) | 2006 x 1005 x 1343 |
Equipment
- Polyester round filter
- Manual filter cleaning
- Automatic filter cleaning
- Traction drive, hydrostatic
- Floating main sweeper roller
- Suction volume regulation
- Coarse dirt flap
- Overhead sweeping principle
- Forward traction drive
- Reverse traction drive
- Suction
- Outdoor use
- Elapsed time counter
- Sweeping function can be deactivated
- Wheels, pneumatic-tyred
