ProMedUSA Model SGFC-400 Ioniser

For Installation in Wall Mounted or Ceiling Aircons, Hotel Rooms, Hospital Rooms, Clinics, Public Transport, Gyms, Spas, Homes.

Room size up to 50SqM or airflow of 340-1,700 CMH

ProMedUSA Model SGFC-400

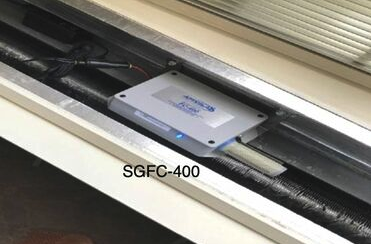

For offices, hotel rooms, physician's clinics, hospital rooms, or private homes, this tiny Model SGFC-400 unit installs quickly in your aircon cassette or vent and will restore your indoor air quality to Mountain-Top freshness quickly and economically.

APPLICATION

The SGFC-400 bipolar ionization system is designed for mounting in the supply discharge side of smaller air handling units such as a fan coil or heat pump. The SGFC-400 is capable of producing a range of 350 – 1,500 negative ions/cm3

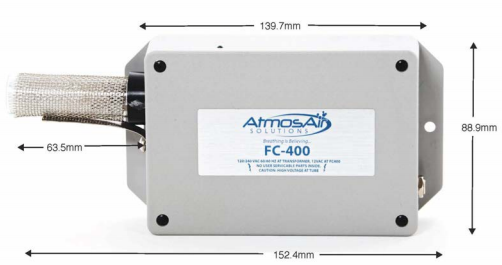

SPECIFICATIONS

• Air Flow Capacity: Up to 2,380 CMH

• Pressure Drop: Nil

• Weight: 320 grams

• Housing Material: ABS UL94-V0

• Maximum Temperature: 65°C

• Input Voltage: 120-240VAV, 50/60Hz, 5 Watts

• Internal Operating Voltage: 12VDC

• Ionization Tube: Multi-core Composite Stainless Steel

• AtmosAir Tube Size: “B” 63.5mm

• Rated Tube Life 17,600 hours (approx. 2+years) APPROVALS UL Power Supply (UL60950), ROHS Compliant CSA222.22, Validated CCC
